Steering Ram
$1,239.00Select options
This product has multiple variants. The options may be chosen on the product page
| ITEM | DESCRIPTION | QTY | PART NUMBER |
| 1 | Gimbal Housing (Black) | 1 | 05-1306 |
| 1A | Gimbal Housing (Silver) | 1 | 05-1307 |
| 2* | Steering Cap SC | 1 | 05-1319 |
| 2 | Steering Cap California Black | 1 | 01-1551 |
| 2A | Steering Cap NV Black | 1 | 01-1552 |
| 2B | Steering Cap Generic Black | 1 | 01-1553 |
| 2C | Steering Cap ITS Black | 1 | 01-1554 |
| 2D | Steering Cap Tie Bar Starboard Black | 1 | 01-1555 |
| 2E | Steering Cap Tie Bar Port Black | 1 | 01-1556 |
| 2F | Steering Cap California Silver | 1 | 01-1558 |
| 2G | Steering Cap NV Silver | 1 | 01-1559 |
| 2H | Steering Cap Generic Silver | 1 | 01-1560 |
| 2I | Steering Cap ITS Silver | 1 | 01-1561 |
| 2J | Steering Cap Tie Bar Starboard Silver | 1 | 01-1562 |
| 2K | Steering Cap Tie Bar Port Silver | 1 | 01-1563 |
| 3 | Steering Bracket (Port) Black | 1 | 05-1312 |
| 3A | Steering Bracket (Port) Silver | 1 | 05-1314 |
| 4 | Steering Bracket (Starboard) Black | 1 | 05-1313 |
| 4A | Steering Bracket (Starboard) Silver | 1 | 05-1315 |
| 5 | Screw (7/16-14 x 1 1/4” 12 pt. S/S) | 8 | 08-070907091 |

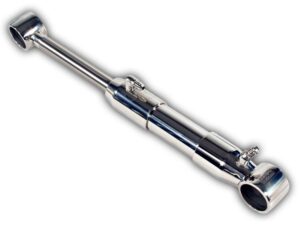

| 6 | Trim Ram (Port) | 1 | 05-6028 |

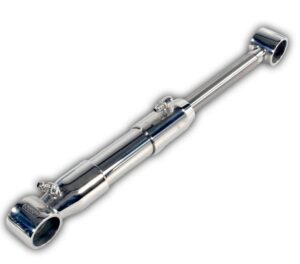

| 7 | Trim Ram (Starboard) | 1 | 05-6029 |
| 8 | Fitting (45° Jic -5 to 1/4” pipe S/S 316) | 2 | 09-2009 |
| 9 | Fitting (90° Jic -5 to 1/4” pipe S/S 316) | 6 | 09-2010 |
| 10 | -5 Hose Assembly 17 1/2” | 4 | 05-2331 |
| 11 | -5 Hose Assembly 10 1/4” | 2 | 05-2332 |
| 12 | -5 Hose Assembly 25 1/2” | 2 | 05-2330 |
| 13 | 3/4” x 2” Clevis Pin | 4 | 05-6434 |
| 14 | Washer (1/2” AN S/S) | 4 | 08-101000001 |
| 15 | Nut (1/2-13 Nylock S/S) | 4 | 08-081008001 |
| 16 | Steering Ram | 2 | 05-6030 |
| 17 | Nut (1/2-20 Thin Nylock S/S) | 4 | 08-091004001 |
| 18 | Urethane Bushing | 8 | 05-2240 |
| 19 | Clevis Joint | 4 | 05-1034 |
| 20 | Clevis Bolt | 4 | 05-6035 |
| 21 | Rear Anchor Pin | 1 | 05-3612 |
| 22 | S/S Washer (Big Hole-Trim Pin) | 2 | 05-6002 |
| 23 | Bushing (Trim Pin) | 4 | 05-2020 |
| 24 | S/S Washer (Small Hole-Trim Pin) | 2 | 05-6004 |
| 25 | Nut (7/16-20 Nylock S/S) | 2 | 08-080904001 |
| 26 | Cap (Plastic Anchor Pin Cap) | 2 | 05-2021 |
| 27 | Screw (10-24 x 5/8” HH S/S) | 4 | 08-010403051 |
| 28 | Nut (10-24 Nylock S/S) | 4 | 08-080403001 |
| 29 | Hose Anchor | 4 | 05-6012 |
