For install instructions, please see the corresponding product description below.
$855.00

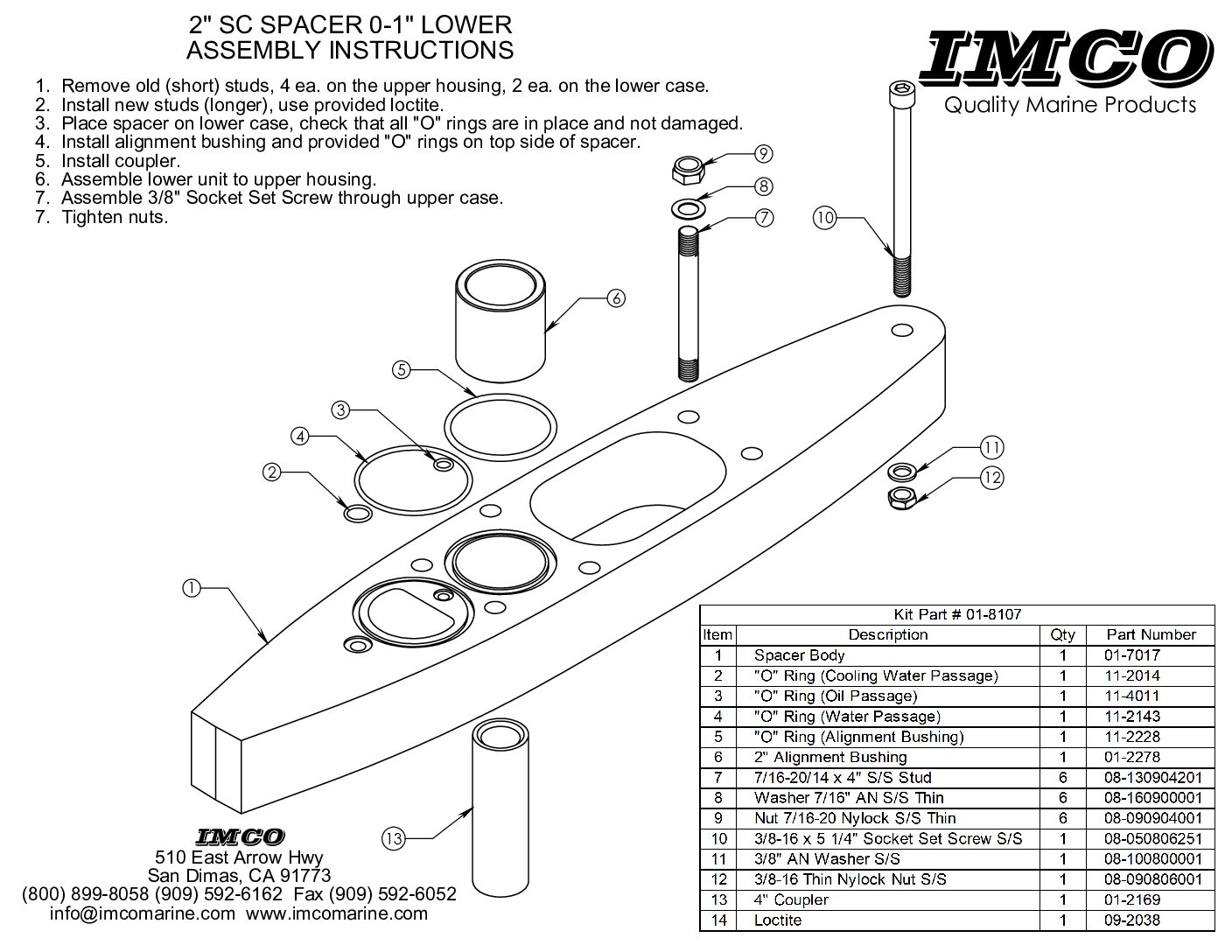

| 2″ SC Spacer for 0″-1″ SC Lower Kit Part # 01-8107 Installation Instructions: Click here for PDF File |
| Item | Description | Qty | Part Number |
| 1 | Spacer Body | 1 | 01-7017 |
| 2 | “O” Ring (Cooling Water Passage) | 1 | 11-2014 |
| 3 | “O” Ring (Oil Passage) | 1 | 11-4011 |
| 4 | “O” Ring (Water Passage) | 1 | 11-2143 |
| 5 | “O” Ring (Alignment Bushing) | 1 | 11-2228 |
| 6 | 2″ Alignment Bushing | 1 | 01-2278 |
| 7 | 7/16-20/14 x 4″ S/S Stud | 6 | 08-130904201 |
| 8 | Washer 7/16″ AN S/S Thin | 6 | 08-160900001 |
| 9 | Nut 7/16-20 Nylock S/S Thin | 6 | 08-090904001 |
| 10 | 3/8-16 x 5 1/4″ Socket Set Screw S/S | 1 | 08-050806251 |
| 11 | 3/8″ AN Washer S/S | 1 | 08-100800001 |
| 12 | 3/8-16 Thin Nylock Nut S/S | 1 | 08-090806001 |
| 13 | 4″ Coupler | 1 | 01-2169 |
| 14 | Loctite | 1 | 09-2038 |

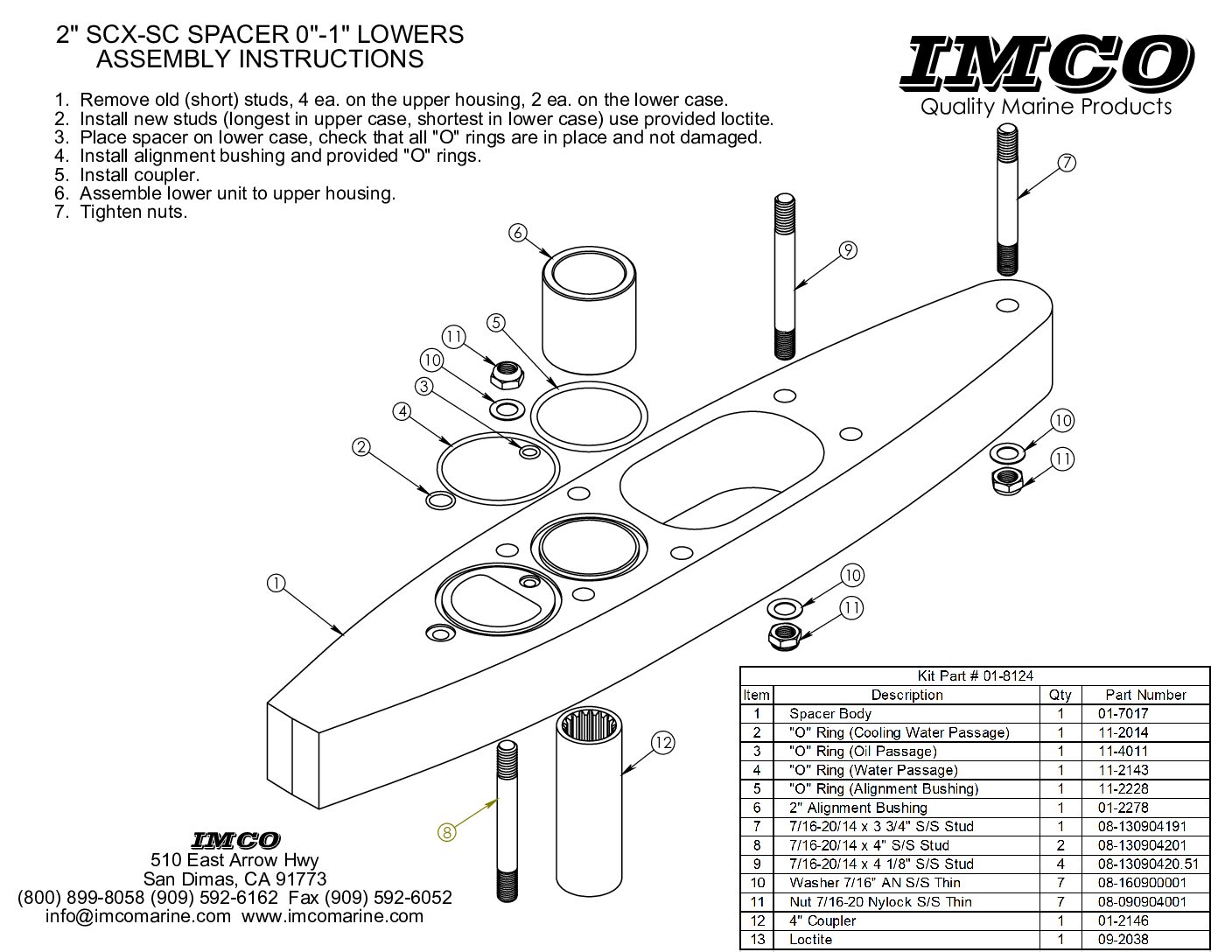

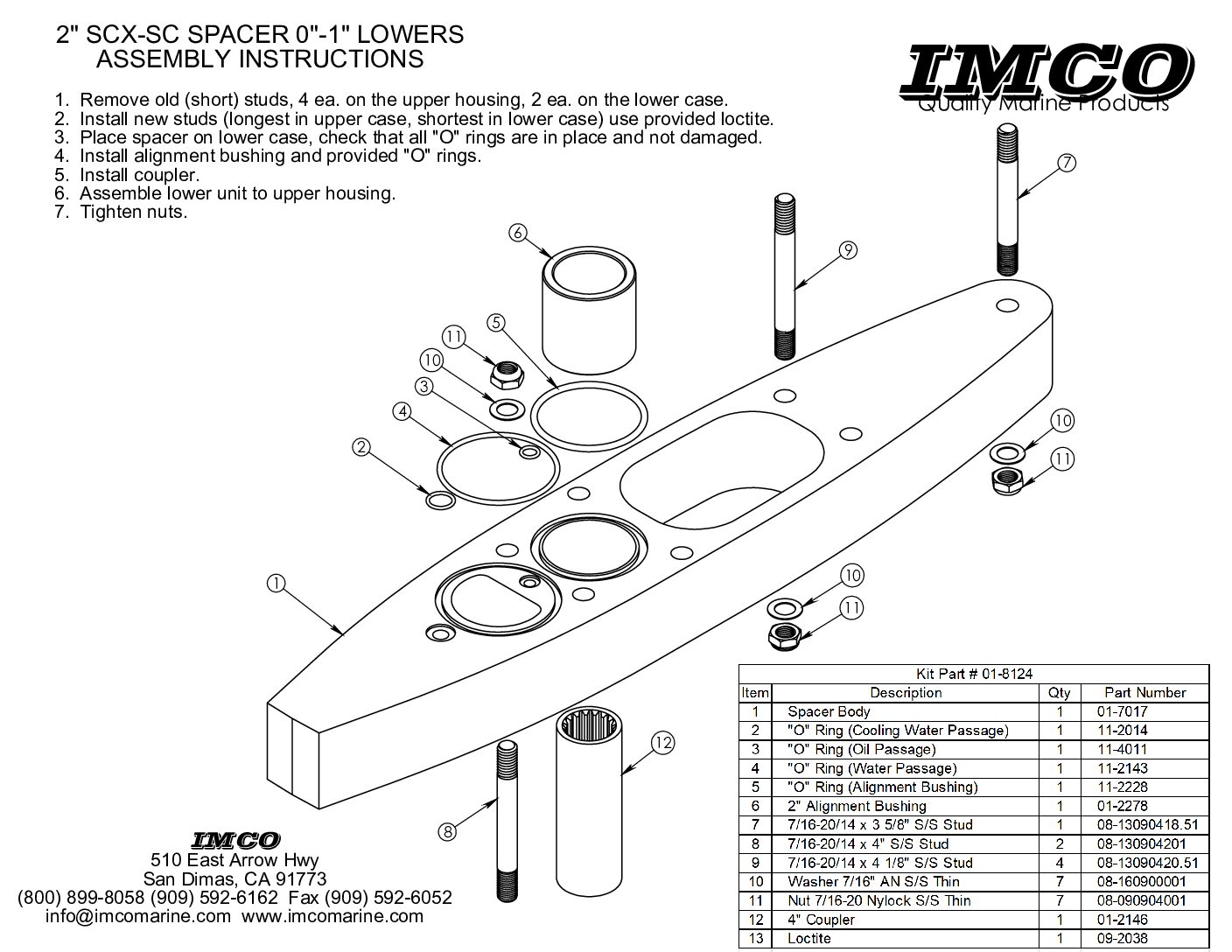

| 2″ SCX-SC Spacer for 0″-1″ SC Lower Kit Part # 01-8124 Installation Instructions: Click Here for PDF File |
| Item | Description | Qty | Part Number |
| 1 | Spacer Body | 1 | 01-7017 |
| 2 | “O” Ring (Cooling Water Passage) | 1 | 11-2014 |
| 3 | “O” Ring (Oil Passage) | 1 | 11-4011 |
| 4 | “O” Ring (Water Passage) | 1 | 11-2143 |
| 5 | “O” Ring (Alignment Bushing) | 1 | 11-2228 |
| 6 | 2″ Alignment Bushing | 1 | 01-2278 |
| 7 | 7/16-20/14 x 3 3/4″ S/S Stud | 1 | 08-130904191 |
| 8 | 7/16-20/14 x 4″ S/S Stud | 2 | 08-130904201 |
| 9 | 7/16-20/14 x 4 1/8″ S/S Stud | 4 | 08-13090420.51 |
| 10 | Washer 7/16″ AN S/S Thin | 7 | 08-160900001 |
| 11 | Nut 7/16-20 Nylock S/S Thin | 7 | 08-090904001 |
| 12 | 4″ Coupler | 1 | 01-2146 |
| 13 | Loctite | 1 | 09-2038 |
