For install instructions, please see the corresponding product description below.
$570.00

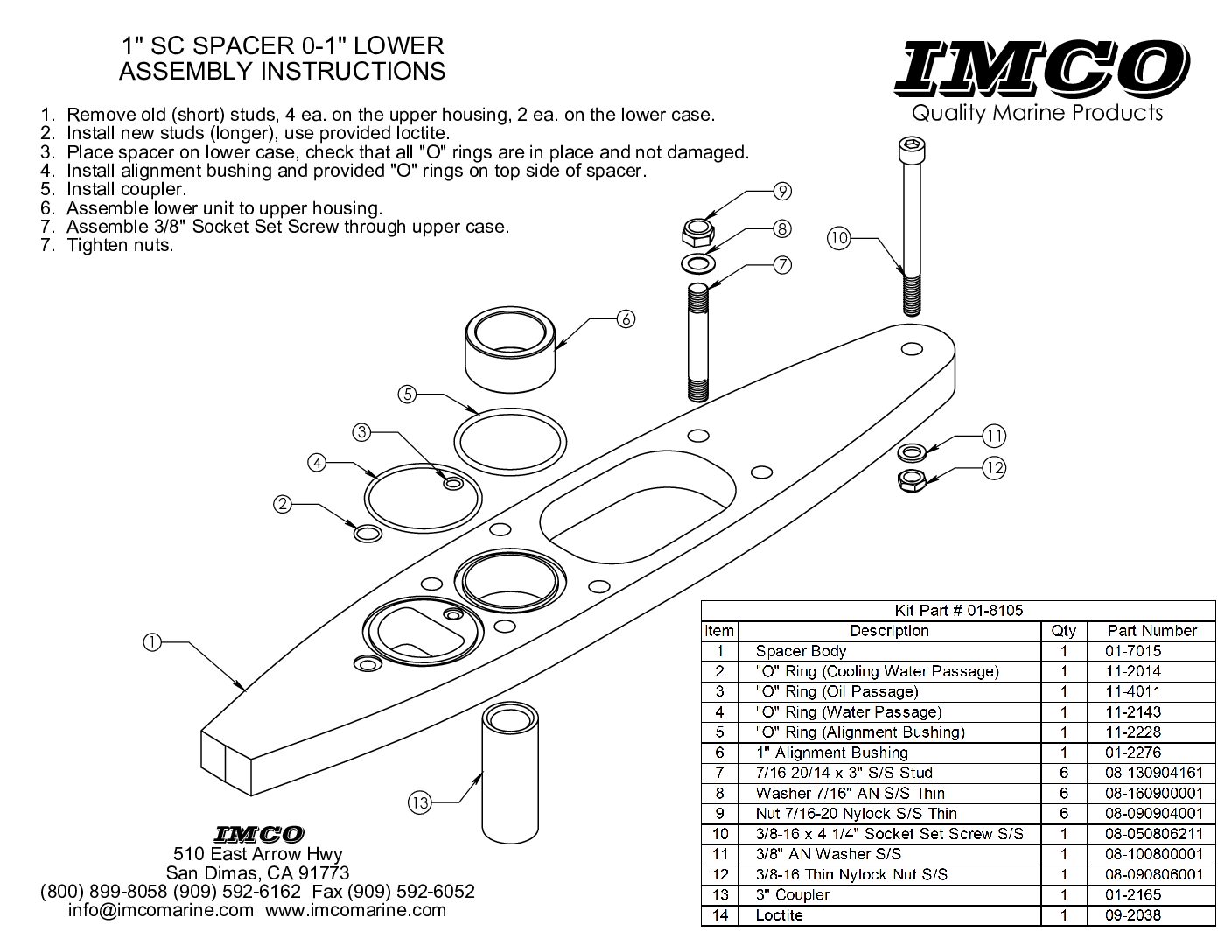

| 1″ SC Spacer for 0″-1″ SC Lower Kit Part # 01-8105 Installation Instructions: Click here for PDF File |
|||
| Item | Description | Qty | Part Number |
| 1 | Spacer Body | 1 | 01-7015 |
| 2 | “O” Ring (Cooling Water Passage) | 1 | 11-2014 |
| 3 | “O” Ring (Oil Passage) | 1 | 11-4011 |
| 4 | “O” Ring (Water Passage) | 1 | 11-2143 |
| 5 | “O” Ring (Alignment Bushing) | 1 | 11-2228 |
| 6 | 1″ Alignment Bushing | 1 | 01-2276 |
| 7 | 7/16-20/14 x 3″ S/S Stud | 6 | 08-130904161 |
| 8 | Washer 7/16″ AN S/S Thin | 6 | 08-160900001 |
| 9 | Nut 7/16-20 Nylock S/S Thin | 6 | 08-090904001 |
| 10 | 3/8-16 x 4 1/4″ Socket Set Screw S/S | 1 | 08-050806211 |
| 11 | 3/8″ AN Washer S/S | 1 | 08-100800001 |
| 12 | 3/8-16 Thin Nylock Nut S/S | 1 | 08-090806001 |
| 13 | 3″ Coupler | 1 | 01-2165 |
| 14 | Loctite | 1 | 09-2038 |

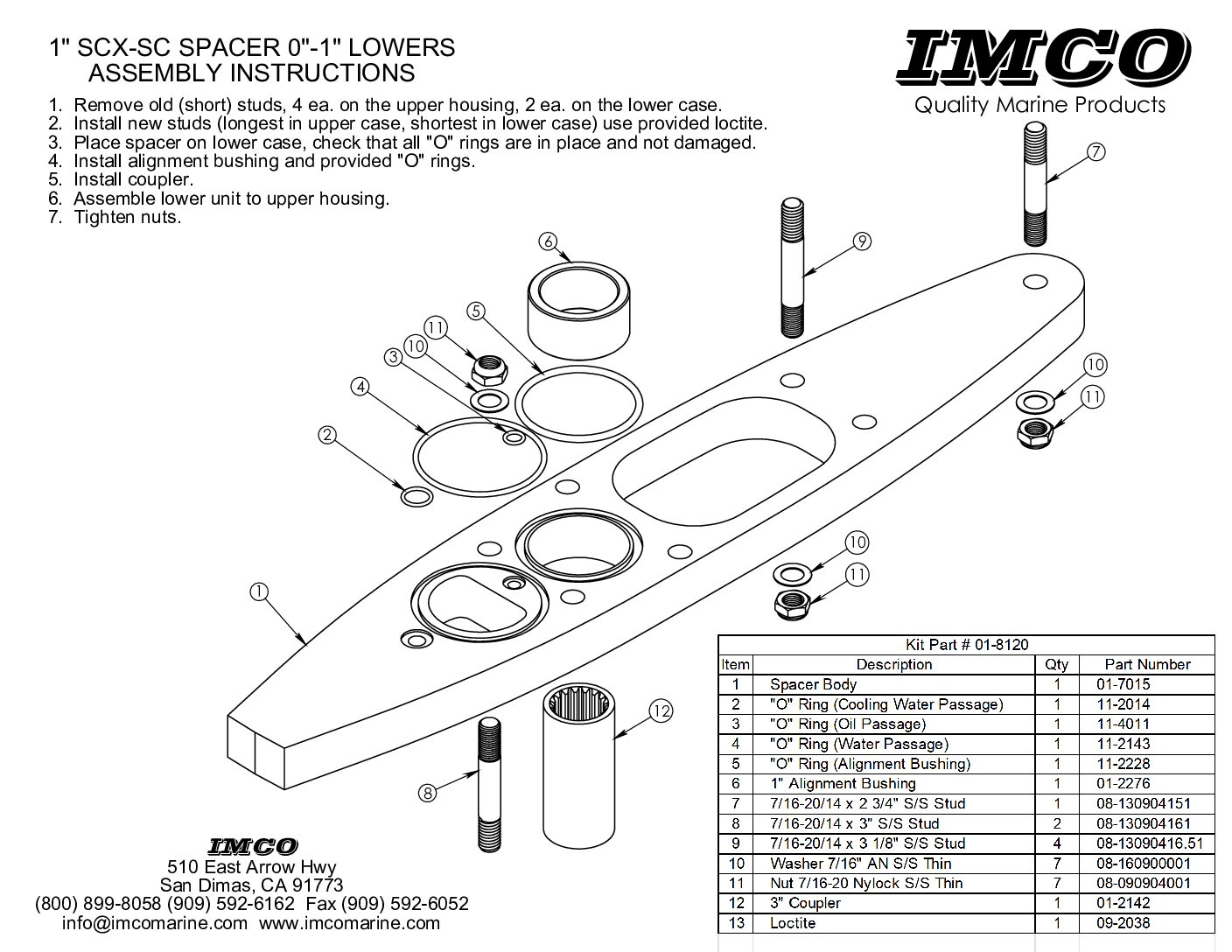

| 1″ SCX-SC Spacer for 0″-1″ SC Lower Kit Part # 01-8120 Installation Instructions: Click Here for PDF File |
|||
| Item | Description | Qty | Part Number |
| 1 | Spacer Body | 1 | 01-7015 |
| 2 | “O” Ring (Cooling Water Passage) | 1 | 11-2014 |
| 3 | “O” Ring (Oil Passage) | 1 | 11-4011 |
| 4 | “O” Ring (Water Passage) | 1 | 11-2143 |
| 5 | “O” Ring (Alignment Bushing) | 1 | 11-2228 |
| 6 | 1″ Alignment Bushing | 1 | 01-2276 |
| 7 | 7/16-20/14 x 2 3/4″ S/S Stud | 1 | 08-130904151 |
| 8 | 7/16-20/14 x 3″ S/S Stud | 2 | 08-130904161 |
| 9 | 7/16-20/14 x 3 1/8″ S/S Stud | 4 | 08-13090416.51 |
| 10 | Washer 7/16″ AN S/S Thin | 7 | 08-160900001 |
| 11 | Nut 7/16-20 Nylock S/S Thin | 7 | 08-090904001 |
| 12 | 3″ Coupler | 1 | 01-2142 |
| 13 | Loctite | 1 | 09-2038 |
