For install instructions, please see the corresponding product description below.
$563.00

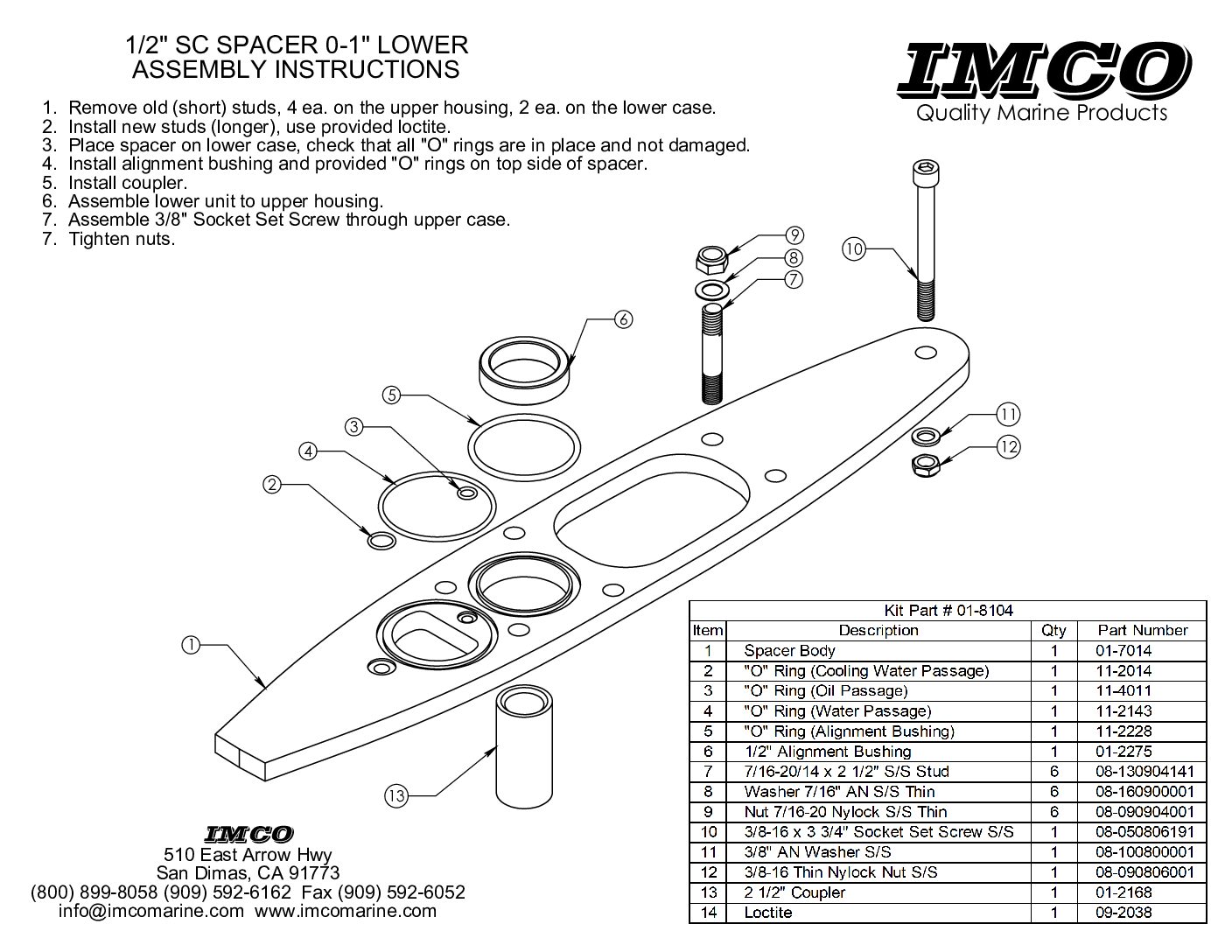

1/2″ SC Spacer for 0″-1″ SC Lower Kit Part # 01-8104 Installation Instructions: Click here for PDF File |
|||
Item | Description | Qty | Part Number |
1 | Spacer Body | 1 | 01-7014 |
2 | “O” Ring (Cooling Water Passage) | 1 | 11-2014 |
3 | “O” Ring (Oil Passage) | 1 | 11-4011 |
4 | “O” Ring (Water Passage) | 1 | 11-2143 |
5 | “O” Ring (Alignment Bushing) | 1 | 11-2228 |
6 | 1/2″ Alignment Bushing | 1 | 01-2275 |
7 | 7/16-20/14 x 2 1/2″ S/S Stud | 6 | 08-130904141 |
8 | Washer 7/16 ” AN S/S Thin | 6 | 08-160900001 |
9 | Nut (7/16-20 Nylock S/S Thin | 6 | 08-090904001 |
10 | 3/8-16 x 3 3/4″ Socket Set Screw S/S | 1 | 08-050806191 |
11 | 3/8″ AN Washer S/S | 1 | 08-100800001 |
12 | 3/8-16 Thin Nylock Nut S/S | 1 | 08-090806001 |
13 | 2 1/2″ Coupler | 1 | 01-2168 |
14 | Loctite | 1 | 09-2038 |

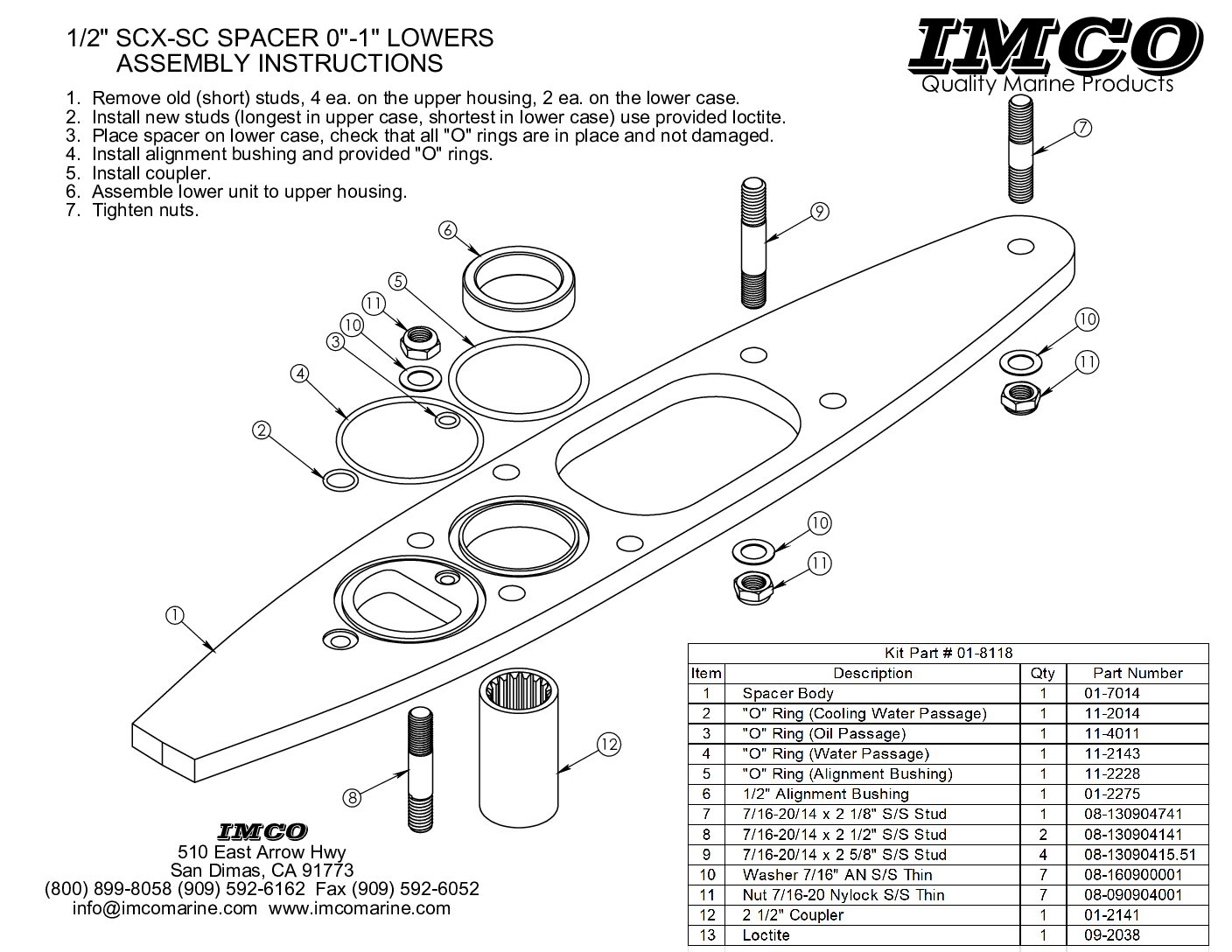

1/2″ SCX-SC Spacer for 0″-1″ SC Lower Kit Part # 01-8118 Installation Instructions: Click Here for PDF File |
|||
Item | Description | Qty | Part Number |
1 | Spacer Body | 1 | 01-7014 |
2 | “O” Ring (Cooling Water Passage) | 1 | 11-2014 |
3 | “O” Ring (Oil Passage) | 1 | 11-4011 |
4 | “O” Ring (Water Passage) | 1 | 11-2143 |
5 | “O” Ring (Alignment Bushing) | 1 | 11-2228 |
6 | 1/2″ Alignment Bushing | 1 | 01-2275 |
7 | 7/16-20/14 x 2 1/8″ S/S Stud | 1 | 08-130904741 |
8 | 7/16-20/14 x 2 1/2″ S/S Stud | 2 | 08-130904141 |
9 | 7/16-20/14 x 2 5/8″ S/S Stud | 4 | 08-13090415.51 |
10 | Washer 7/16″ AN S/S Thin | 7 | 08-160900001 |
11 | Nut 7/16-20 Nylock S/S Thin | 7 | 08-090904001 |
12 | 2 1/2″ Coupler | 1 | 01-2141 |
13 | Loctite | 1 | 09-2038 |
