Lower Your SCX4 Drive By 1 1/2″

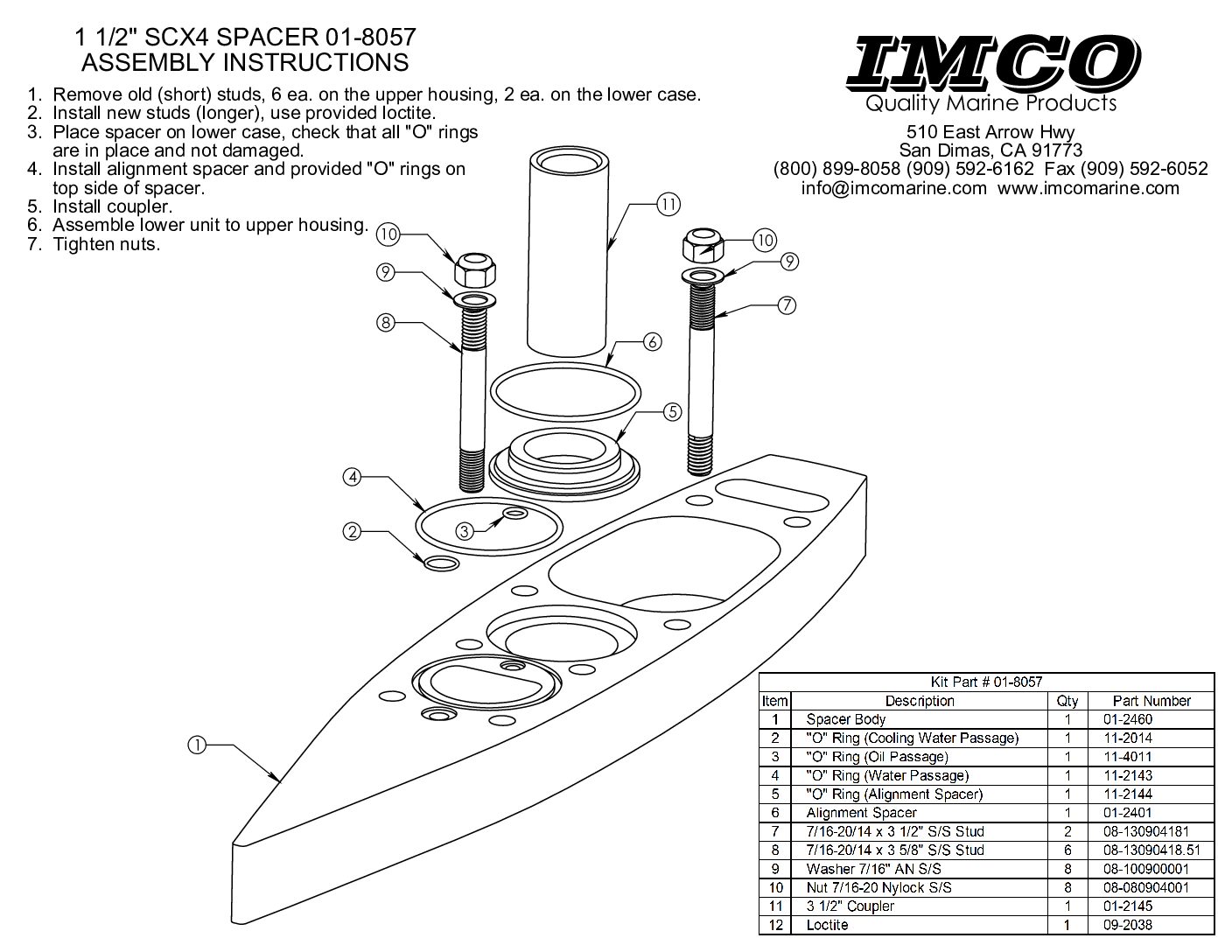

To view and download the PDF instruction sheet CLICK HERE
$799.00
| SCX4 1-1/2″ Spacer Kit Kit Part # 01-8057 |
|||
| Item | Description | Qty | Part Number |
| 1 | Spacer Body | 1 | 01-2460 |
| 2 | “O” Ring (Cooling Water Passage) | 1 | 11-2014 |
| 3 | “O” Ring (Oil Passage) | 1 | 11-4011 |
| 4 | “O” Ring (Water Passage) | 1 | 11-2143 |
| 5 | “O” Ring (Alignment Spacer) | 1 | 11-2144 |
| 6 | Alignment Spacer | 1 | 01-2401 |
| 7 | 7/16-20/14 x 3 1/2″ S/S Stud | 6 | 08-130904181 |
| 8 | 7/16-20/14 x 3 5/8″ S/S Stud | 2 | 08-13090418.51 |
| 9 | Washer 7/16″ AN S/S | 8 | 08-100900001 |
| 10 | Nut 7/16-20 Nylock S/S | 8 | 08-080904001 |
| 11 | 3 1/2″ Coupler | 1 | 01-2145 |
| 12 | Loctite | 1 | 09-2038 |
