Lower Your SCX Dual Downshaft Drive By 1 1/2″

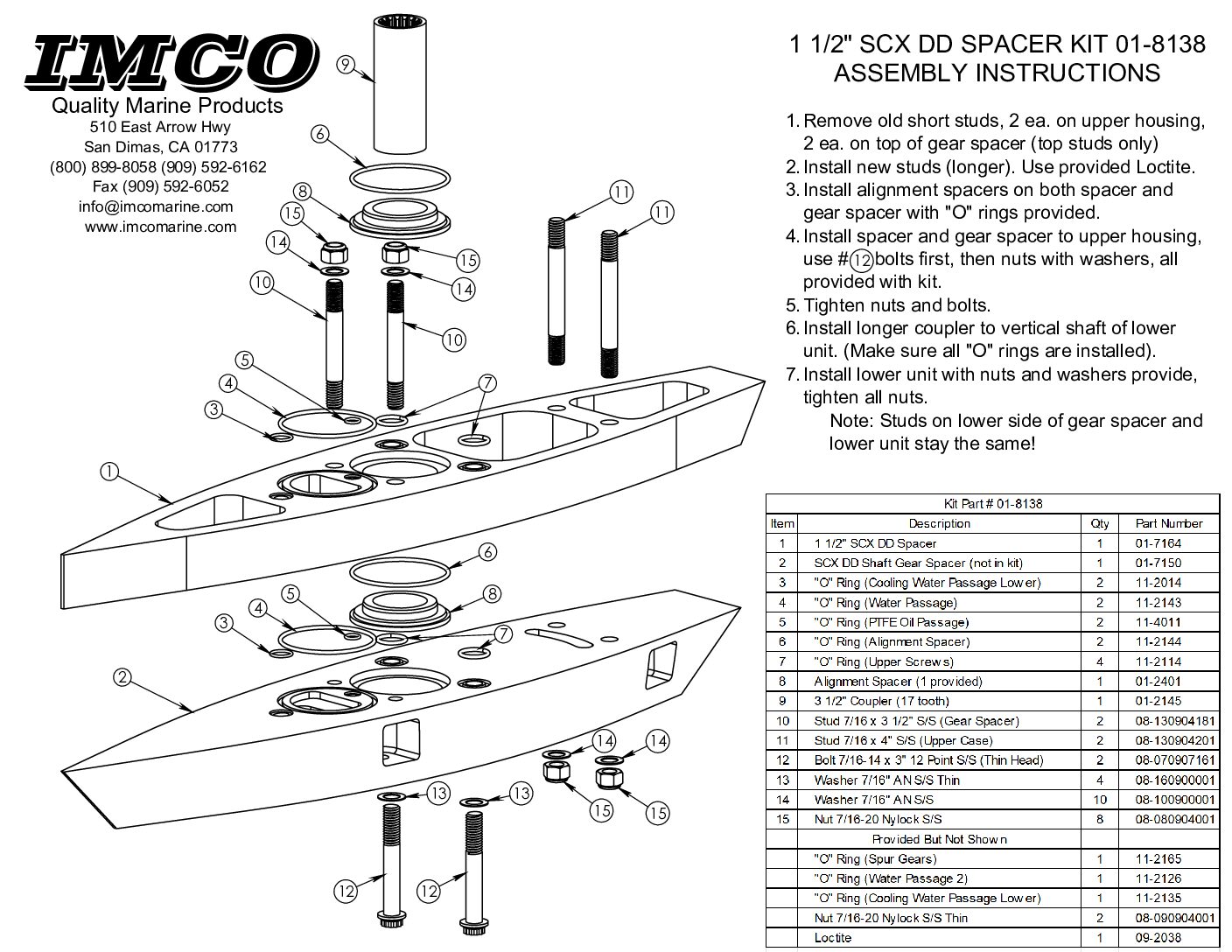

To view and download the PDF instruction sheet CLICK HERE
$799.00
| 1 1/2″ SCX Dual Dualshaft Drive Spacer Kit Kit Part # 01-8138 |
|||
| Item | Description | Qty | Part Number |
| 1 | 1 1/2″ SCX DD Spacer | 1 | 01-7164 |
| 2 | SCX DD Shaft Gear Spacer (not in kit) | 1 | 01-7150 |
| 3 | “O” Ring (Cooling Water Passage Lower) | 2 | 11-2014 |
| 4 | “O” Ring (Water Passage) | 2 | 11-2143 |
| 5 | “O” Ring (PTFE Oil Passage) | 2 | 11-4011 |
| 6 | “O” Ring (Alignment Spacer) | 2 | 11-2144 |
| 7 | “O” Ring (Upper Screws) | 4 | 11-2114 |
| 8 | Alignment Spacer (1 provided) | 1 | 01-2401 |
| 9 | 3 1/2″ Coupler (17 tooth) | 1 | 01-2145 |
| 10 | Stud 7/16 x 3 1/2″ S/S (Gear Spacer) | 2 | 08-130904181 |
| 11 | Stud 7/16 x 4″ S/S (Upper Case) | 2 | 08-130904201 |
| 12 | Screw 7/16-14 x 3″ 12 Point S/S (Thin Head) | 2 | 08-070907161 |
| 13 | Washer 7/16″ AN S/S Thin | 4 | 08-160900001 |
| 14 | Washer 7/16″ AN S/S | 10 | 08-100900001 |
| 15 | Nut 7/16-20 Nylock S/S | 6 | 08-080904001 |
| Provided But Not Shown | |||
| “O” Ring (Spur Gears) | 1 | 11-2165 | |
| “O” Ring (Water Passage 2) | 1 | 11-2126 | |
| “O” Ring (Cooling Water Passage Lower) | 1 | 11-2135 | |
| Nut 7/16-20 Nylock S/S Thin | 2 | 08-090904001 | |
| Loctite | 1 | 09-2038 | |
